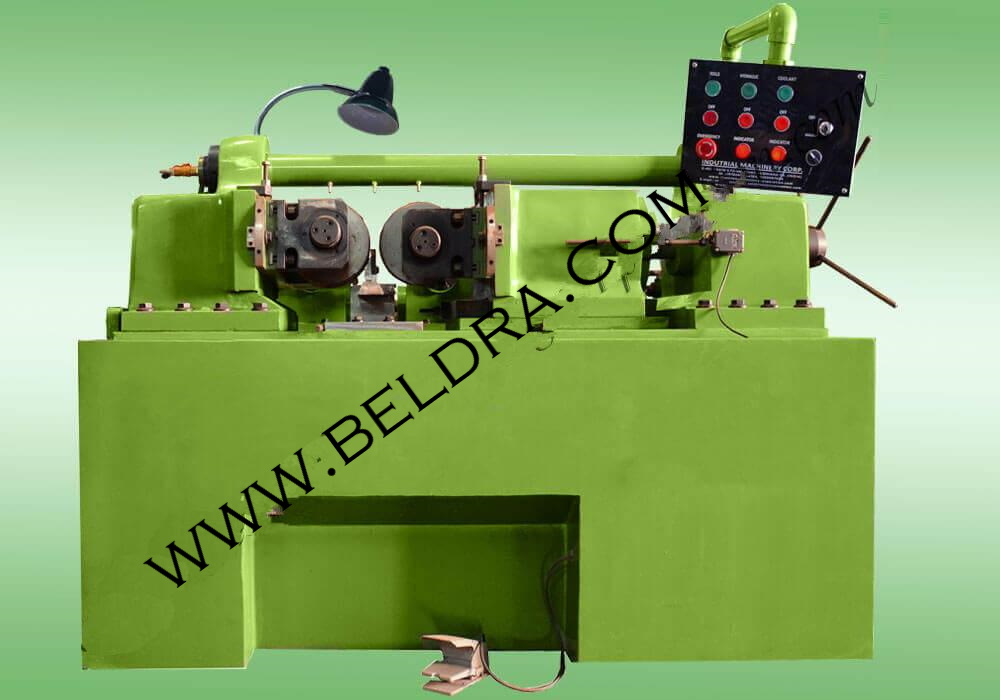

HYDRAULIC THREAD ROLLING MACHINE 2 ROLL

0 out of 5 based on 0 customer ratings
(0 customer reviews)

Beldra Industries are engaged in manufacturer of Hydraulic Thread Rolling Machine 2Roll use for producing screws, bolts and tools. It is a cold-forming operation only for external screws threads in a blank. The blank is pressed by thread rolling dies which are attached to the machine. The threads were formed by the pressing progress.

Beldra Industries are engaged in manufacturer of Hydraulic Thread Rolling Machine 2Roll use for producing screws, bolts and tools. It is a cold-forming operation only for external screws threads in a blank. The blank is pressed by thread rolling dies which are attached to the machine. The threads were formed by the pressing progress.

Hydraulic Thread Rolling Machine Manufacture by Beldra Industries Machines in India are made of high grade material. The main feature of this Hydraulic Rolling Machine is that it is very fast and easily comprehensible machine. Before it is dispatched, it is tested many times in our production house, which means that you don’t need to worry about anything. If you want to buy Hydraulic thread rolling machine then feel free to contact us and we will guide you the best.

There is an growing demand in the markets for These machines. Hydraulic thread rolling machines that are not just made of superior grade materials, but are also easy to use and easier to maintain. One way of ensuring that your purchase of a Hydraulic thread rolling machine is the right one would be to ensure that it is either purchased from a reputed brand or has the backing of a company that has been in the field since long.

The hydraulic thread rolling machine which is brought to the markets under the aegis of Beldra Industries is one of the best in its domains. This is so because not only does the company have exclusive designs for the thread rolling machines, which make this particular thread rolling machine unique and user friendly, the fact that they utilize the finest grade material for the fabrication, ensures that it is durable and relatively low on factors such as maintenance.

In the world of Hydraulic thread rolling machine, perhaps the most extensive range of hydraulic thread rolling machine is offered by Beldra Industries. This has been possible after years of extensive research being put in by the team at the company. They have been able to develop a wide range of thread rolling machines, which suit the needs and requirements of a variety of industries.

A Hydraulic thread rolling machine is more often than not, fitted with a system that is truly advanced. This allows for the function not just smoothly, but also in a manner that is hassle free. High level quality processes and constant checks also ensure that the amount of money and time spent on maintenance is minimal. Apart from this, there is also the guarantee that the ultimate output offered will be on the higher side.

Some of the signs of a good and reliable Hydraulic rolling machine would be that it incorporates features such as a resistance to abrasion and water. The Hydraulic Thread rolling machines have been built to withstand wear and tear as well as breakage. This ensures that whoever invests in this hydraulic thread rolling machine, receives full value for the money spent.

hydraulic thread rolling machine that are fabricated in accordance with the specifications provided by the customer. These include sizes for bolts, bars, rods etc.

Hydraulic Thread Rolling Machine

Hydraulic Machine Model IMC-25 IMC-40 IMC-50 IMC-80 IMC-100 IMC-120
Max. Pitch Can be Rolled (in mm) 2.5 3.5 4.0 5.0 5.5 8
Max. Dia can be Rolled in feed (in mm) 25 40 50 80 100 125
Max. Dia can be Through feed (in mm) 16 28 35 40 50 70
Max. Rolling Length in feed (in mm) 80 150 150 150 150 150
Max. Rolling Length Through feed Indefinite Indefinite Indefinite Indefinite Indefinite Indefinite
Max. Outer Dia Thread Rolls (in mm) 150 180 200 220 220 220
Spindle Dia (Bore Dia) (in mm) 54 54 69.85 69.85 69.85 69.85
Max. Rolling Force 8 Tons 13 Tons 15 Tons 24 Tons 30 Tons 40 Tons
Power for Roll Spindles 3 H.P. 1400 RPM 5 H.P. 1400 RPM 7.5 H.P. 1400 RPM 10 H.P. 1400 RPM 12.5 H.P. 1400 RPM 15 H.P. 1400 RPM
Power for Hydraulic Pump 2 H.P. 3 H.P. 5 H.P. 5 H.P. 5 H.P. 7.5 H.P.
Power for coolant pump 0.1 H.P. 0.1 H.P 0.1 H.P 0.1 H.P 0.1 H.P 0.1 H.P.
