HYDRAULIC PIPE THREADING MACHINE

0 out of 5 based on 0 customer ratings

Hydraulic Pipe Threading Machine comes with control panel to operate the machine with automatic and manually. We provide it with power pack and five cylinder to operate the machine more conveniently. It is also available in PLC control with which you can easily maintain the thread length and you don’t need to change any settings with one click you can change the thread length of the job. There are many more features come with this machine please send us email and we let you know about it details.

Category: Threading Machines

Description
Reviews (0)

In an industry that is increasingly becoming competitive and cut-throat. The only way for any organization to survive is to provide the best product that it can. While in the market of threading machines, the competition is no less and there are a number of companies that are fighting to reach the pinnacle by offering the best in hydraulic pipe threading machine and others.

However, there are a few companies that are able to stand heads and shoulders above others and one such company that has carved a niche for itself in the domain of fabricating high-grade threading machine, especially threading machine is the Beldra Industries.

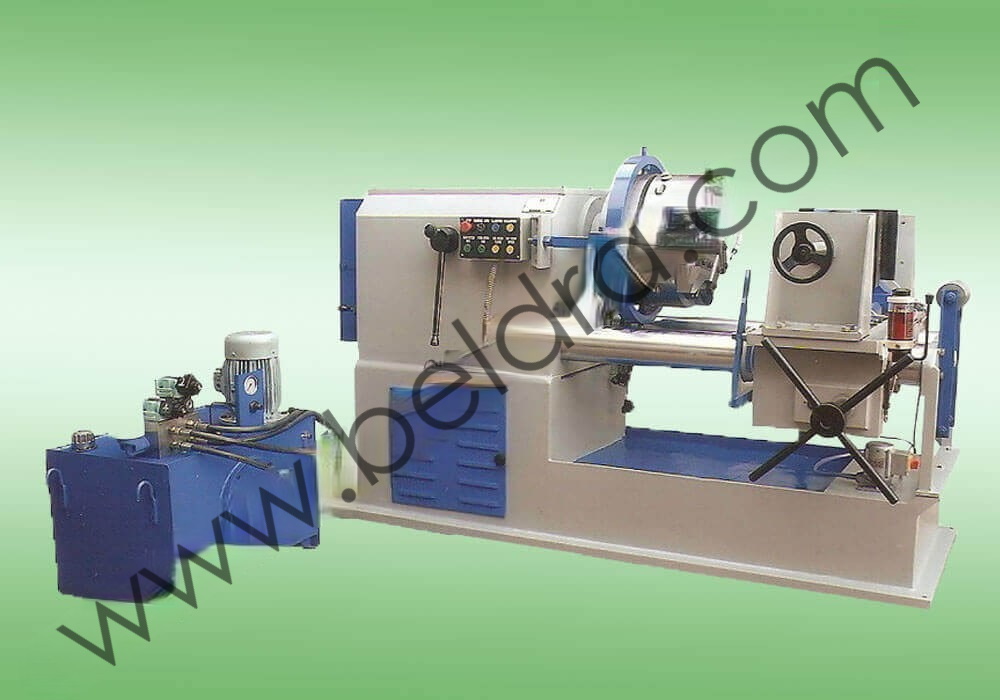

The pipe threading machine offered here is basically a pillar type threading machine. Which is fitted with an opening mechanism that operates automatically. Which means minimal human labor is required.

This threading machine has five separate hydraulic cylinders which ensure the best possible working. While one cylinder is for the pipe clamping process, another is placed to engage the lead screw box nut. The third cylinder has been placed in the machine so as to allow to cover the distance between die-head opening and the job. The fourth cylinder is to open and close the die-head and the final cylinder is to stop the job before the die-head to maintain the thread length required.

Beldra Industries too ensures that it manufactures threading machine not only in accordance with industry standards but also keeping in mind the varied requirements of the customers. This is the reason why they offer models with different specifications, including requirement of power, saddle movement, threading capacity, spindle speed range and production per unit time.

So, for anyone looking for a hydraulic pipe threading machine, it is important that they consider the above-mentioned factors and ensure that the machine they are picking, has all.

Range of IMC Die Heads.
1/2″ to 2.1/2″ Capacity
1″ to 4″ Capacity
2.1/2″ to 6″ Capacity
4″ to 8″ Capacity
