HORIZONTAL LEDGER WELDING SYSTEM

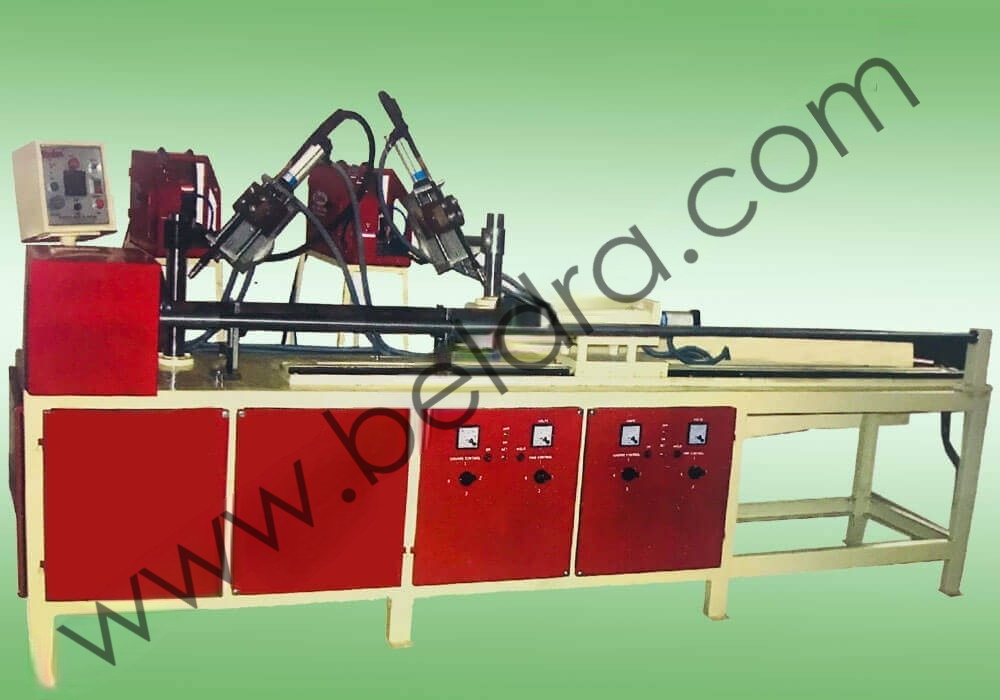

Horizontal Ledger Welding Machine

Horizontal ledger welding machine designed to weld ledger blades together at the same time, machine hold and weld the blades proportional to each other. This unit is pneumatically operated for clamping the ledger blades with pipe and also the movement of welding torches, the machine has screw wheel drive to adjust the length from 500mm to 2500mm. As per own requirement. Machine itself has adjustments for different welding angles as 360 angle adjustments. Left to right adjustments & height adjustments available for better penetration.

Automatic Ledger welding machine is used to weld ledger blades with pipe without making any joint between them, It gives high production and accuracy to product. Ledger post are used with combination of Cup lock welding to make a structure. All the components are used in combination of each other. Base jack welding machine, Inner prop welding machine, Outer prop welding machine, Cuplock welding machine, Ringlock welding machine.

Specifications :-
