CUP LOCK WELDING SYSTEM
Product Description

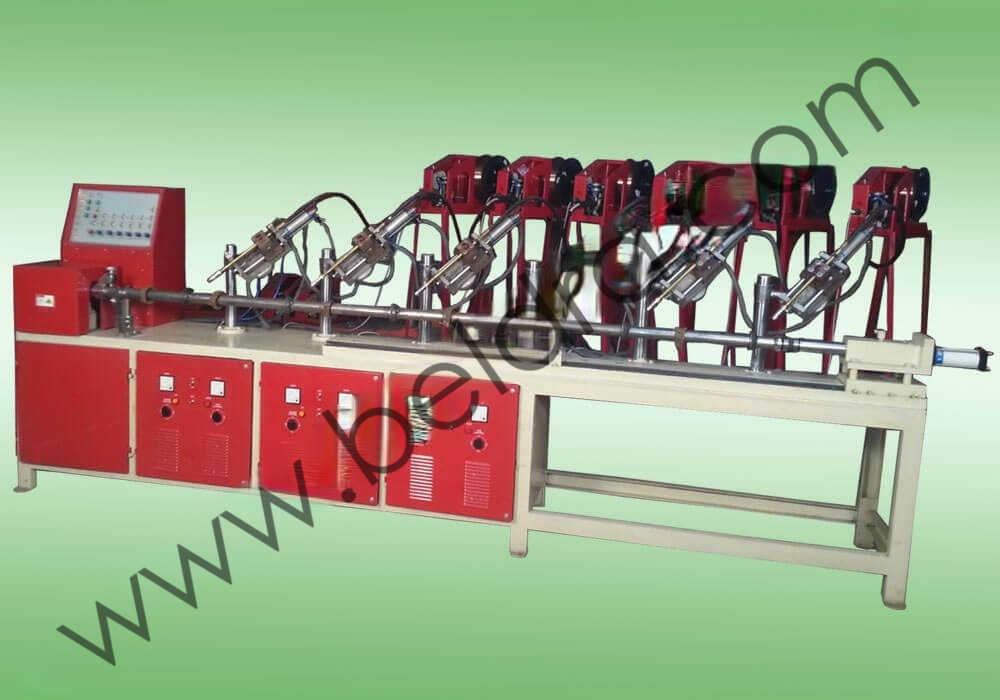

Cup Lock Welding System
This special machine is for scaffolding Vertical Cup Lock Welding System and the pipe With Cups and lock pins automatic welding .Equipment make use advanced programmable control technology to Finish welding in one-time, improve production efficiency, and reduce labor intensity, welding effect to meet
This system is based on Circular welding on Cups with Pipe from three positions of cups for Fastest production and Uniform Welding and it helps operator be safe from burning skin of continuous welding process, By using this machine one can save the Consumption of CO2 Gas and weld with proper welding thickness on each single job as per standard required and the production out comes will help them to be competitive in market by fastest supply, clean and safe process of welding.
Specifications:-
| Input voltage | 3- phase 380-415 V 300A | ||
| Control system input voltage | 3- phase 380-415 V | ||
| Control system | 1kw | ||
| Motor power | .86 kw | ||
| Speed | 6-25 s/round | ||
| Poling | 1-3 m (2-6 pics) | ||
| Welding torch distance | 500 mm | ||
| Motion way | Pneumatic | ||
| Welding angle | 0-600 Degree | ||
| Maxamium workpiece number | 6 pics | ||
| Dimension | 3900X800X1700 mm | ||
| Machine area | 4.5X3.5m | ||
| Weight | 1.5T |
